ICE End Mills

Innovative Custom Engineering is excited to introduce our full catalog of Solid Round End Mills!

End Mill Selection

We have put together a catalog that we hope will contain every solid end mill you would ever need. Here are the major categories we offer:

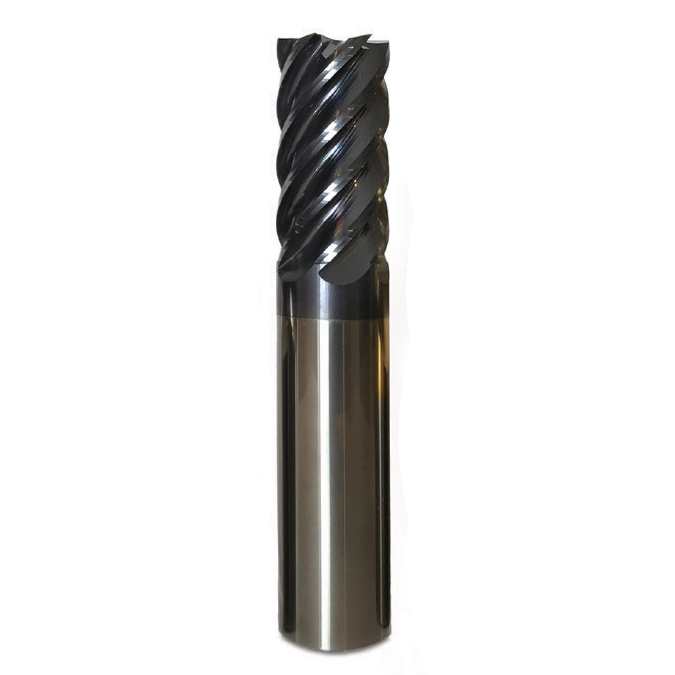

Professional – PRO

Our Pro Series is a highly capable mill that can zip through most any material. It is supreme at working with Steel, Cast Iron, and is more than capable at working with Stainless and High-Temp Alloys.

PRO Series Stats

• General Purpose
• 30 deg Helix Carbide with honed edges
• 10% Micro Grain Carbide
• Diameter Tolerances: +0.0000”/-0.0020”

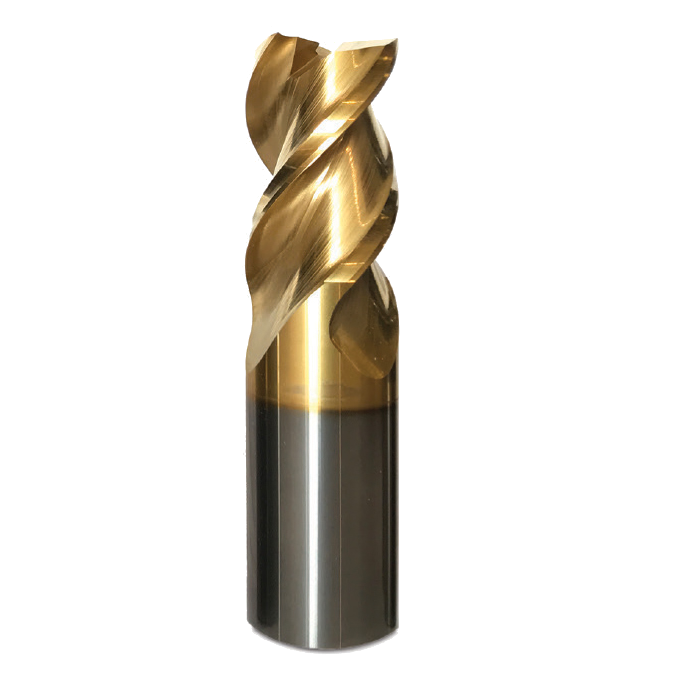

Non-Ferrous – NFE

Running some Aluminum or other non-ferrous materials? Get ready to rip this aluminum with a +0.0000/-0.0004″ Tolerance.

NFE Series Stats

• Special Helix Design with Cylindrical Margin for improved stability in Aluminum & Non-Ferrous materials
• Variable Pitch to reduce chatter with special core design & chip breaker flute geometry
• Ultra High Performance Micro Grain Carbide with extremely high Transverse Rupture strength
• Diameter Tolerances: +0.0000”/-0.0004”

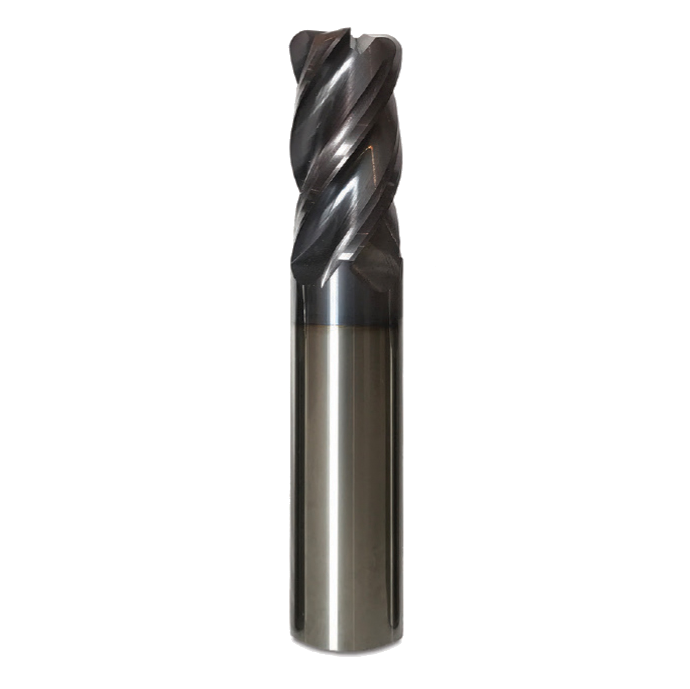

Performance – PER

If you still want a great mill and are strictly working with Steel or Cast Iron, then this would be the best option. Slightly more cost effective with the same level of performance in Steel and Cast.

PER Series Stats

• Special Helix Design with honed edges
• Variable Pitch to reduce chatter with special core design
• 10% Micro Grain Carbide
• Diameter Tolerances: +0.0000”/-0.0020”

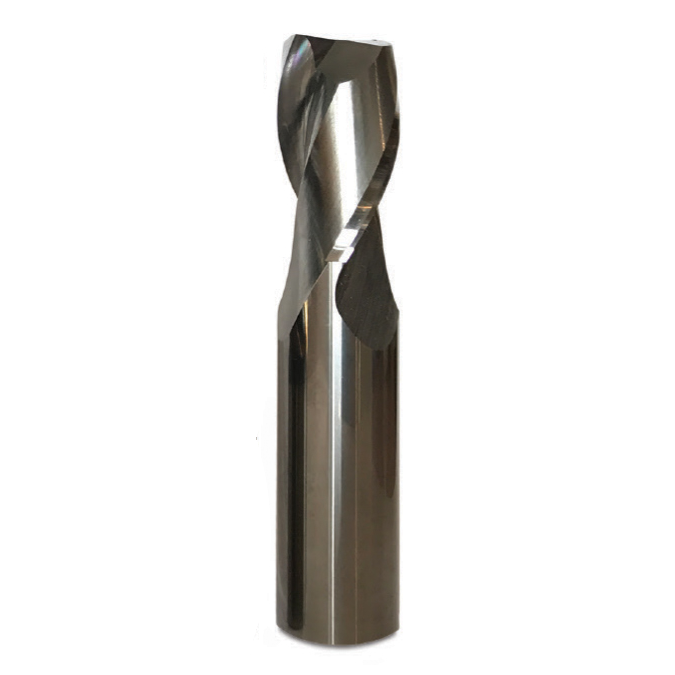

Economy – ECO

Sometimes life sends short-run projects, sometimes project estimates need a little savings on cost, and sometimes it really doesn’t matter what you throw at a project, it just eats your mill up. It is for these reasons that we thought it would be important to offer an economical offering when it is necessary.

ECO Series Stats

• General Purpose
• 30 Degree Helix Carbide with honed edges
• 10% Micro Grain Carbide
• Diameter Tolerances: +0.0000”/-0.0020”
